Geothermal maintenance & repair in Dallas–Fort Worth
Geothermal is the most reliable HVAC there is — but reliable isn't maintenance-free. Our NATE-certified technicians work on ground-source systems every single day, and we answer the phone at 2 a.m. in August.
Your system has a heartbeat. Most techs can't read it.
A geothermal heat pump running right has a steady rhythm: consistent loop pressure, even temperatures in and out, calm amp draw. Running wrong, the rhythm gets erratic long before anything actually breaks.
Here's the catch — most HVAC technicians never touch ground-source equipment. They can't evaluate loop pressure, check antifreeze with a refractometer, or diagnose a water-to-refrigerant heat exchanger. Guesswork on a geothermal system creates new problems.
Geothermal is all we do. We've serviced over 1,000 installations across DFW, so we know what a healthy system sounds like — and what an unhealthy one is about to do.
What we check, season by season
Two maintenance visits a year — spring and fall, each including filter service — plus filter service in summer and winter. That's filters handled four times a year. Here's the whole calendar on one wheel.
Loop pressure (40–60 PSI), antifreeze at 15–20%, water temperatures in vs out, refrigerant charge, coil, condensate drain, fresh filter — before cooling season hits.
Mid-season filter service while the system runs its longest hours — DFW logs 20+ days at 100°F+ most years. Call at the first odd sound.
Full maintenance visit before heating season, filter included: reversing valve flips to heat, flow center circulates, auxiliary strips stay off unless truly needed.
Season's fourth filter service. Your loop sits in 67–69°F earth, so no cold-weather performance drop — a bill spike usually means aux heat is sneaking on.
Takeaway: a few hundred dollars a year of maintenance protects a $25,000–$65,000 system. The math is not close.
Ground loop
- Loop pressure holding 40–60 PSI
- Antifreeze at 15–20% (refractometer test)
- Flow center pump: flow rate, amps, noise
- Delta-T across the heat exchanger
Refrigerant & power
- Superheat / subcooling charge check
- Compressor amp draw vs nameplate
- Expansion valve response
- Safety switches tested
Air side
- New filter, correct MERV
- Coil inspected and cleaned if needed
- Condensate drain cleared for humid DFW summers
- Blower wheel, motor amps, airflow verified
Heating changeover
- Reversing valve shifts cleanly to heat
- Heat of extraction measured at the loop
- Supply temperature split verified in heat mode
Auxiliary heat
- Strips energize only below the right threshold
- Staging verified — no strip heat doing the loop's job
- Thermostat setpoints and lockouts confirmed
Freeze readiness
- Antifreeze protection verified for rare hard freezes
- Controls and sensors calibrated
- Written report of every reading, year over year

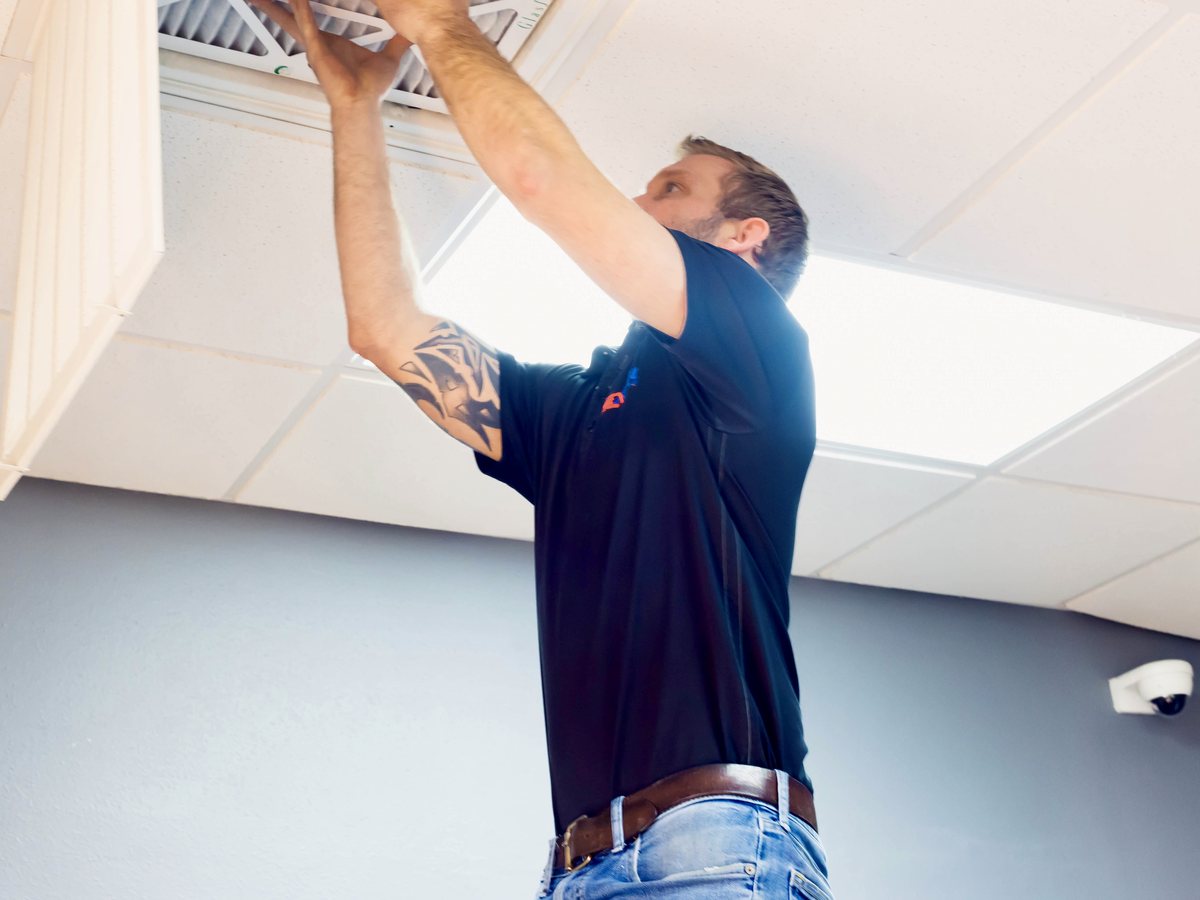

The $15 filter that guards a $15,000 heat pump
A clogged filter is like breathing through a straw while running. The blower strains, coils choke, and the compressor — the most expensive part in the system — runs hot for thousands of hours.
It's the single most common cause of reduced performance and early component wear we see — and the easiest to prevent: we match filters to your exact size and handle them on every visit.
What this means for your bill
The most common "geothermal bill spike" isn't the heat pump at all — it's electric auxiliary heat strips running when they shouldn't. Strips make heat at 100% efficiency; your loop does it at 400–500% (COP 4–5). We check strip staging on every tune-up, and the fix often pays for the visit on the very next bill.
2 a.m. in a Dallas August? We answer.
When a system quits during a 105°F stretch — or a rare hard freeze like Winter Storm Uri — you need a tech who has actually worked on geothermal, not one meeting it for the first time.
Call the line, reach our dispatch, get a NATE-certified technician. Our vans carry loop pumps, capacitors, contactors, control boards, expansion valves, and filters, so most repairs finish on the first visit.
- No heating or cooling, or running with no temperature change
- Unusual noise, water leak, or condensate overflow
- Tripped breaker, safety lockout, or thermostat error codes
- Ice on the unit or a frozen coil
During Uri, homes with geothermal kept heating off their 67–69°F loops while air-source heat pumps fought single-digit air. The loop doesn't care what the sky is doing.
The four repairs we see most in DFW
After 1,000+ systems, the patterns are clear — and all four are cheap to catch early.
Loop pressure loss
A slow leak, usually at an indoor fitting — rarely the buried loop itself. We isolate indoor piping from the loop field to find it fast.
Reversing valve
The valve that flips heating to cooling can stick or buzz with age. A routine swap for techs who do it regularly.
Loop pump
The little pump that moves water through your wells. We stock common models so downtime is hours, not weeks.
Control boards
Electronics fail like electronics do. We carry boards for common WaterFurnace and ClimateMaster models.
Honest guidance, in writing
Compressors last 15–20 years with care. When repair cost approaches equipment value, we'll tell you straight whether a heat pump replacement makes more sense — your wells and ducts usually have decades left, so a new unit rides on paid-for infrastructure.
Factory-trained on the brands in your closet
Meet Isai, our lead service technician — NATE-certified and geothermal-only. Our team is factory-trained on the two biggest names in ground-source equipment and services everything else too.
WaterFurnace Symphony owners get remote monitoring — we often spot a drifting reading weeks before it becomes a breakdown.
What a tune-up visit looks like
About 90 minutes, no shortcuts, and you get every number we measured — this year next to last year's.
Myth vs fact
Myth: "Geothermal is maintenance-free."
Fact: The buried loop nearly is — it's designed to last 50+ years with virtually zero care. The indoor machine still has a compressor, blower, and electronics that want one checkup a year, like any hardworking machine. Well-maintained DFW systems here routinely run 15–18 years at near-original efficiency.
Listen first
Any rooms running warm? Bills creeping? Odd sounds? Your observations point the inspection.
Check the loop
Pressure, antifreeze concentration, pump flow, and water temperatures in and out of the heat exchanger.
Check the machine
Refrigerant charge, compressor amps, reversing valve, expansion valve, safety controls.
Check the air side
Filter, coil, blower, condensate drain, and total airflow against manufacturer specs.
Check the controls
Thermostat calibration and — always — that auxiliary heat only runs when it truly must.
Report in writing
Every reading documented and compared to prior years, so trends surface before failures do.
Service questions, straight answers
From Plano to Rockwall to Southlake, these are the ones homeowners ask most.
See all FAQsTwice a year — spring before cooling season and fall before heating season — with filter service included in both visits, plus standalone filter service in summer and winter. A few hundred dollars a year protects a $25,000–$65,000 system, and the buried loop itself needs virtually no maintenance for its 50+ year design life.
Legally yes, competently not always. Most techs never see ground-source systems, so loop pressure, antifreeze, and water-to-refrigerant heat exchangers are outside their experience. Ours work on geothermal every day, across 1,000+ DFW installations.
Yes. Call (214) 305-9017 any hour and dispatch sends a NATE-certified tech. Vans carry common parts — loop pumps, capacitors, contactors, control boards, expansion valves — so most repairs finish on the first visit.
Nine times out of ten: auxiliary heat strips running when they shouldn't. They're rare-use backup, but a bad setting or sensor can leave them on constantly. First thing we check — and fixing it often shows up on the very next bill.
Factory-trained on WaterFurnace and ClimateMaster with common parts in stock; we also service Carrier, Trane, Bosch, FHP, and other ground-source brands. If it's geothermal, we can fix it — including older units, where we source or cross-match parts.
